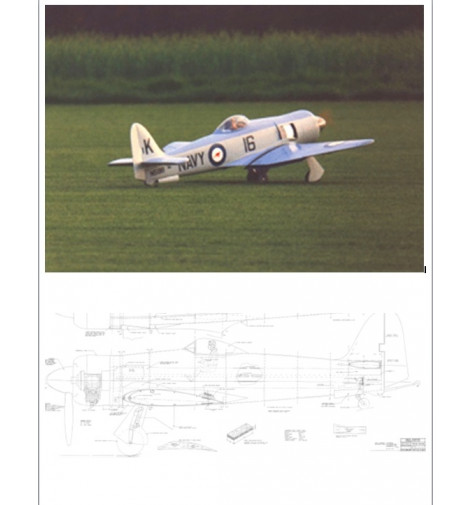

Vailly Sea Fury Plan
Zoom

Vailly Sea Fury Plan

Previous Product Next Product

Only 1000 left

50 $50.00

Product ID: VAIL:SEAFURYP

  • Wing span: 90"
  •  OAL: 81"
  •   Engine:   65 – 85 cc
  •   Weight:  30 – 38 lbs

The Hawker Sea Fury was a British fighter aircraft designed and manufactured by Hawker. It was the last propeller-driven fighter to serve with the Royal Navy, and also one of the fastest production single piston-engined aircraft ever built.Developed during the Second World War, the Sea Fury entered service two years after the war ended. The Sea Fury proved to be a popular aircraft with a number of overseas militaries, and was used during the Korean War in the early 1950s, as well as against the 1961 Bay of Pigs Invasion of Cuba.

From Wikipedia, the free encyclopedia

Qty:

HAWKER SEA FURY
This plane is scaled at 2.35 inches to the foot. The plans show all structures drawn full size including the installation of flaps and Hank Likes retracts and our Giant Scale Retracts. Full size templates are also shown for all ribs and formers. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page.The parts available are: fiberglass cowl and a clear plastic canopy. Sorry, our aluminum spinner and backplate is no longer available. Primary construction is light plywood, balsa and spruce or pine using conventional building techniques. All structures are built-up and sheeted with 1/8 or 3/32 inch balsa. The 90” Seafury uses 5.50 diameter wheels and a 1/5 scale WW II pilot figure.

Plans Specifications:
Specifications: Sea Fury
  • Scale: 1/5
  • Inches to the foot: 2.35" - 1'
  • Length: 81"
  • Weight:  30-38lbs
  • Wing loading: 38-49oz/sqft
  • Wing area: 1800 sq.in
  • Wing span: 90"
  • Wing incidence at root: degrees +2.5
  • Stab incidence:  degree +1.5
  • Dihedral: 3.625" under each wing tip rib 13
  • Power: 65-85cc gas
  • Washout at wing tip: 2 degrees
  • Aileron throws: 20 degrees up and down
  • Elevator throws: 25 degrees up 15 degrees down
  • Rudder throws: 30 degrees right 25 degrees left
  • Flap degrees down: 40-50
  • Cowl length: 8.5"
  • Cowl height front: 11.5"
  • Cowl height rear: 11.5"
  • Cowl width front:: 11.5"
  • Cowl width rear: 11.5"
  • Engine offset degrees: 0,0
  • CG Location: 6" back from leading edge at the fuse
  • Requires:
  • Vailly cowl
  • Vailly canopy
  • Engine:65-85cc gas
  • Spinner: 5.5" Parabolic
  • Fuel tank:: 32oz
  • Control Horns:
  • Hinges:
  • Covering: 1oz fiberglass cloth and epoxy resin
  • Retracts Main
  • Tail gear strut
  • Retract Air Kit
  • Wheels Main: 5.5"
  • Wheels tail: 2.5"
  • Radio channels: 6 or more
  • Servos: Flaps (2)150-200oz MGBB, Ailerons (2)90+oz BB, Elevators (2)90+oz BB, Rudder (1)120+oz BB, Gear (1)50oz, Throttles (1)50oz BB
              MG-metal gear BB-ball bearing
