P-51D Mustang Plans
SKU: ZIR:P51D1
- Scale: 2.6" - 1'
- Wingspan: 98"
- Length: 83"
- Wing Area: 1650 sq/in
- Weight: 26-36lbs
- Power: 62-85cc Gas

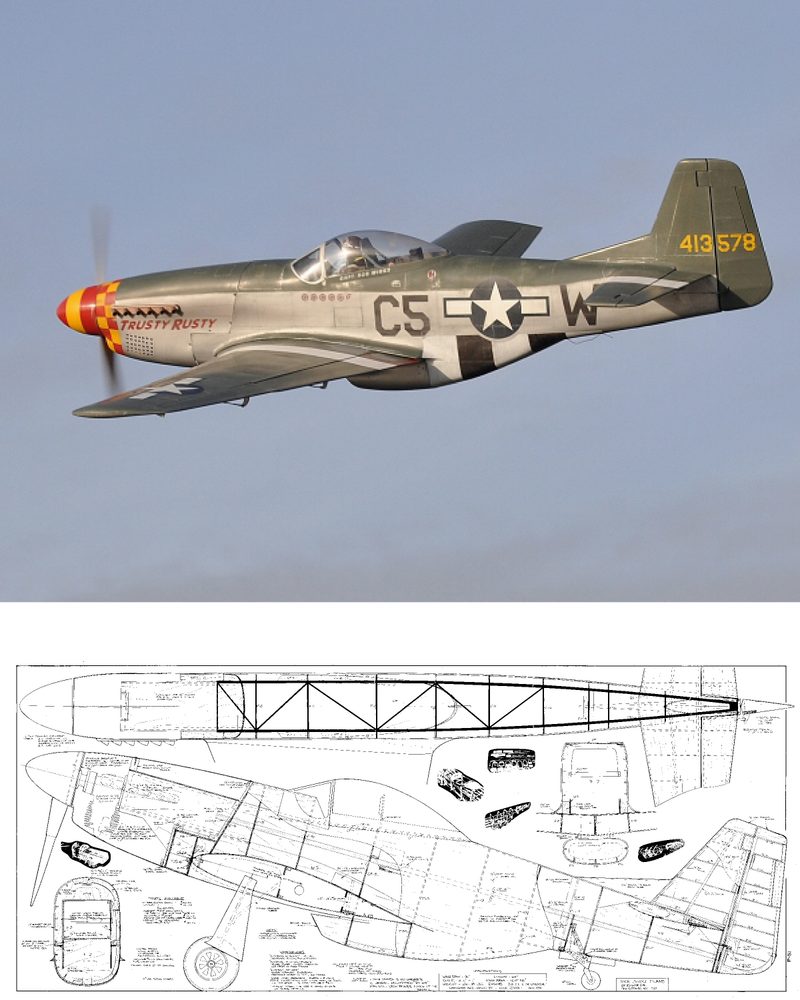

One of the classic American fighter aircraft, the P-51 has secured it's rightful place in aviation history with a blend of performance and aesthetics not often seen. The detailed plan set consists of four large sheets which clearly illustrate all structure as well as showing flap and retract installation. Both B and D model plans are available!
Out of Stock
The giant scale P-51 Mustang plan set is 1/4.6 scale and consists of four large sheets that clearly illustrate all structure as well as showing installation of flaps and retracts. The P-51 Mustang plan shows the installation of Robart retracts, fixed wire gear, servos and Zenoah G-62 engine and features one piece wing. The basic structures use conventional “modeling” tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with 1 oz fiberglass cloth and ZAP Z-poxy finishing resin and elevator and rudder with iron on cloth covering such as Solartex. Nick Ziroli Plans has building and scale accessories available for the P-51 Mustang.
- Specifications: P-51B Mustang Plan
- Scale: 1/4.6
- Inches to the foot: 2.6" - 1'
- Length: 83"
- Weight: 28-36lbs
- Wing loading: 39-50oz/sqft
- Wing area: 1650 sq.in
- Wing span: 98"
- Wing incidence at root: +2.5 degrees
- Stab incidence: +1 degree
- Dihedral: 5.25" under W14
- Power: 62-85cc gas
- Washout at wing tip: 2 to 3 degrees built in with jig
- Aileron throws: 3/4" up and 5/8" down
- Elevator throws: 1" up and 1" down
- Rudder throws: 1.5" to right & 1.5" to left
- Flap degrees down: 40-50
- Cowl length: 18.5"
- Cowl height front: 7.5"
- Cowl height rear: 11"
- Cowl width front:: 6"
- Cowl width rear: 7"
- Engine offset degrees: 1 right 1 down
- CG Location: 8 1/4" back from the leading edge of the wing at the fuselage
- Requires:
- Ziroli cowl
- Ziroli canopy
- Engine: 62-85cc gas
- Spinner: 6"
- Fuel tank:: 32oz rectable
- Control Horns: (3) 1/2", (2) 3/4"
- Hinges: (26) DUBRO# 257 LG flat hinges
- Covering: 1 oz fiberglass cloth & epoxy resin
- Retracts Main
- Retracts tail
- Retract Air Kit
- Wheels Main: 5.5" or 6"
- Wheels tail: 2"
- Radio channels: 6 or more
- Servos: Flaps (2) 150-200oz MGBB, Ailerons (2)90+oz BB, Elevators (2)90+oz BB, Rudder (1)120+oz BB, Gear (1)50oz, Throttles (1)50oz BB
