JU-87D/G Stuka Plan
SKU: ZIR:STUKADG
- Scale: 2.25" - 1'
- Wingspan: 100"-110"
- Length: 77"
- Wing Area: 1630 sq/in
- Weight: 26-32lbs
- Power: 3.0-4.2 c.l/50-75cc gas
Late in WWII The Stuka JU-87B was modified to a 'D' model Stuka with a more aerodynamic canopy, more armor, and a more powerful engine for more survivability and demonstrated it still had effectiveness as a dive bomber. The Stuka JU-87 G was a 'D' model Stuka with an increased wing span. The dive brakes were removed and two BK 37 anti aircraft guns were mounted under the wings and it was used effectively as a Tank killer in the Battles in Russia.
In Stock

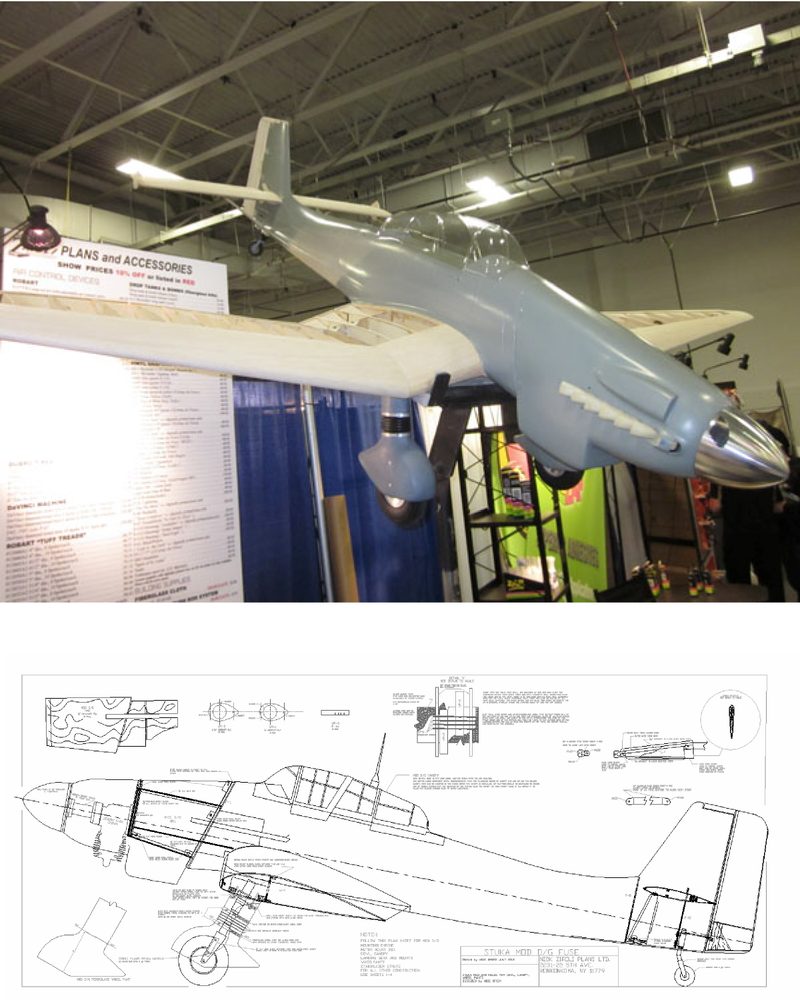

The giant scale JU-87 D/G Stuka plan set is 1/5.3 scale and consists of six large sheets that clearly illustrate all structure as well as showing installation of flaps and dive brakes. The JU-87 D/G Stuka plan shows the installation of fixed wire gear, servos and Zenoah G-62 engine and features one piece wing. The basic structures use conventional “modeling” tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. The plans have a separate instruction guide and building notes on the plans. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with 1 oz fiberglass cloth and ZAP Z-poxy finishing resin. Nick Ziroli Plans has building and scale accessories available for the JU-87 D/G Stuka.
- Specifications: JU-87 Stuka Mod D/G Plan
- Scale: 1/5.3
- Inches to the foot: 2.25" - 1'
- Length: 77"
- Weight: 26-32lbs
- Wing loading: 37-45oz/sqft
- Wing area: 1630 sq.in
- Wing span: 100"/110"
- Wing incidence at root: +2 degrees
- Stab incidence: +1/2 degree
- Dihedral: 6.5" under W18
- Power: 50-75 cc gas
- Washout at wing tip: 2 to 3 degrees built in with jig
- Aileron throws: 1/2" up and 1/2" down
- Elevator throws: 7/8" up and 7/8" down
- Rudder throws: 1.5" to right & 1.5" to left
- Flap degrees down: 50
- Cowl length: 14"
- Cowl height front: 9"
- Cowl height rear: 12"
- Cowl width front:: 6"
- Cowl width rear: 6.75"
- Engine offset degrees: 2 right 2 down
- CG Location: 5" back from leading edge of wing at the fuselage
- Requires:
- Ziroli cowl
- Ziroli canopy
- Ziroli whyeel pants
- Engine: 50-75 cc gas
- Ziroli spinner: 4.5" spinner
- Fuel tank:: 24oz square
- Control Horns: (8) 1/2", (1) 3/4"
- Hinges: (10) DUBRO# 257 LG flat hinges
- Covering: 1oz fiberglass cloth and epoxy resin
- Main gear struts: yes
- Tail gear strut: yes
- Wheels Main: 5.25"
- Wheels tail: 2.25"
- Radio channels: 6 or more
- Servos: Flaps (2) 120+oz MGBB, Ailerons (2)90+oz BB, Elevators (1)90+oz BB, Rudder (1)120oz BB, Gear n/a, Throttles (1)50oz BB
