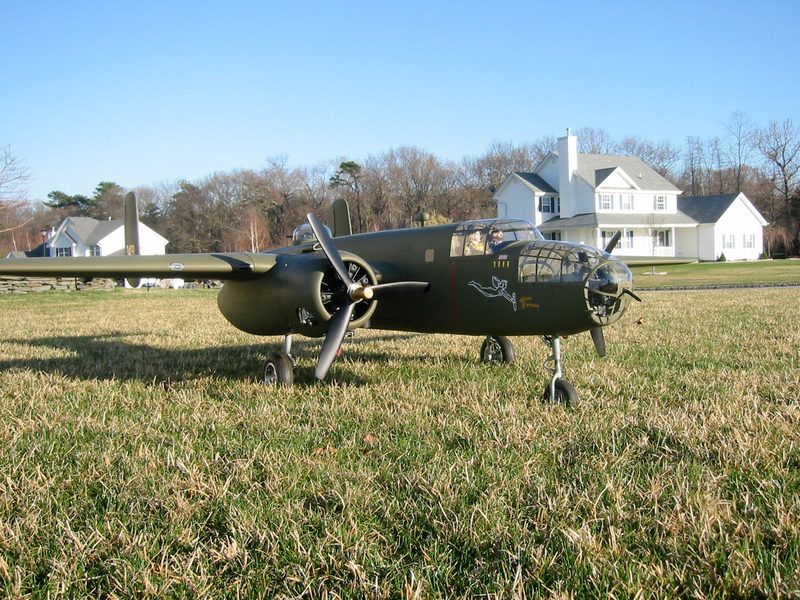

B-25 Mitchell 101" Plan
SKU: ZIR:B25101
- Scale: 1.5" - 1'
- Wingspan: 101"
- Length: 78"
- Wing Area: 1700 sq/in
- Weight: 30-36bs
- Power: 23cc Gas/1.08 c.i. Glow
Produced in no less than 11 variants, the B-25 gained it's place in history as the aircraft used by Gen. Jimmy Doolittle to bomb Tokyo after taking off from the carrier USS Hornet.
Out of Stock

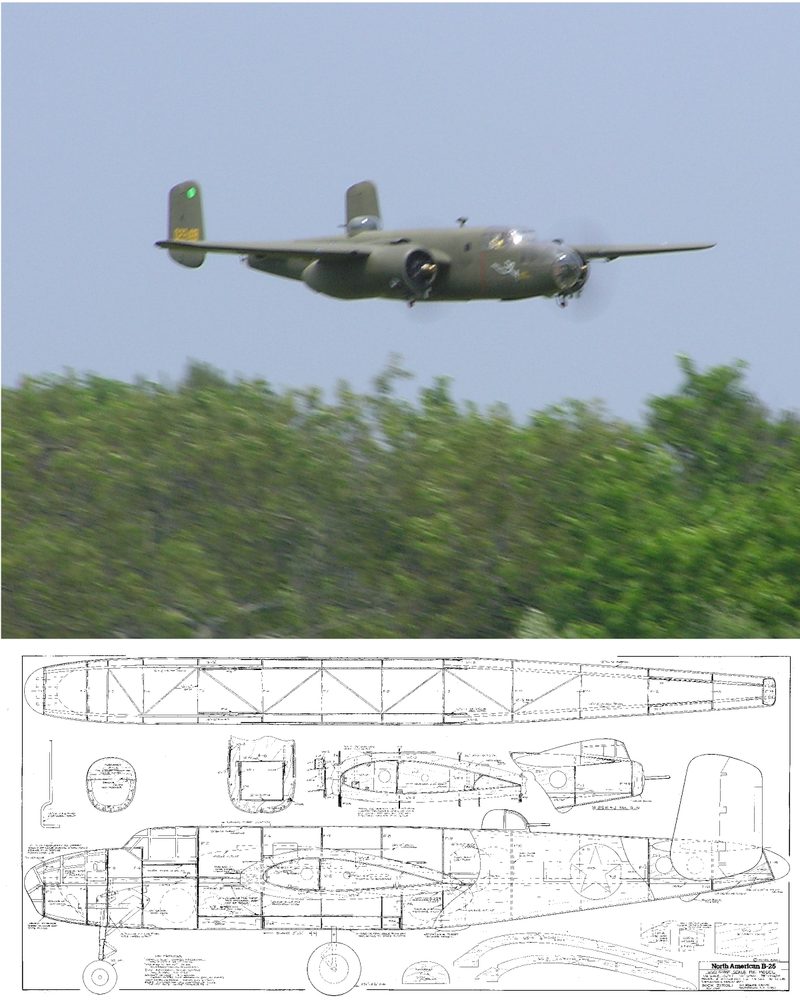

The giant scale B-25 Mitchell plan set is 1/8 scale and consists of four large sheets that clearly illustrate all structure as well as showing installation of flaps and retracts. The B-25 Mitchell plan shows the installation of Robart retracts, fixed wire gear, servos and Zenoah G-23 engine and features three piece wing. The basic structures use conventional “modeling” tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page.The plans have a separate instruction guide and building notes on the plans. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with 1 oz fiberglass cloth and ZAP Z-poxy finishing resin and elevator and rudders with cloth covering such as Solartex. Nick Ziroli Plans has building and scale accessories available for the B-25 Mitchell.
- Specifications: B-25 Mitchell 101"
- Scale: 1/8
- Inches to the foot: 1.5" - 1'
- Length: 78"
- Weight: 28-36lbs
- Wing loading: 39-50oz/sqft
- Wing area: 1650 sq.in
- Wing span: 101"
- Wing incidence at root: +2 degrees
- Stab incidence: +1 degree
- Dihedral: 1/4" drop at wing tip, center section jig built
- Power: (2) 26-38cc gas
- Washout at wing tip: 2 to 3 degrees built in with jig
- Aileron throws: 3/4" up and 1/2" down
- Elevator throws: 1" up and 1" down
- Rudder throws: 1.5" to right & 1.5" to left
- Flap degrees down: 40-50
- Cowl length: 6.25"
- Cowl height front: 6.5"
- Cowl height rear: 8"
- Cowl width front:: 6.5"
- Cowl width rear: 8"
- Engine offset degrees: Right engine 3 right 0 down, Left engine 0 right 0 down
- CG Location: 5" back from leading edge at the fuse with gear down
- Requires:
- Ziroli cowls ( 2)
- Ziroli canopy
- Ziroli plastic side gun pods
- Engine: (2) 26-38cc gas
- Spinner: (2) 1" spinner nuts
- Fuel tank:: (2) 16oz square
- Wing Tube: 1" X 24"
- Control Horns: (2) 1", (2) 1/2"
- Hinges: (14) DUBRO# 257, (4) ROBART LG hinge points
- Covering: 1 oz fiberglass cloth & epoxy resin
- Retracts Main
- Retracts nose
- Retract Air Kit
- Wheels Main: 5.5"
- Wheel nose: 3.5"
- Radio channels: 6 or more
- Servos: Flaps (2)150-200oz MGBB, Ailerons (2)90+oz BB, Elevators (2)90+oz BB, Rudder (1)120+oz BB, Gear (1)50oz, Throttles (2)50oz BB
