Supermarine Spitfire Mk I-V Plan
Zoom

Supermarine Spitfire Mk I-V Plan

Previous Product Next Product

Only 1000 left

60 $60.00

Product ID: ZIR:SPIT1

  • Scale: 2.7" - 1'
  • Wingspan: 100"
  • Length: 81.5"
  • Wing Area: 1575 sq/in
  • Weight: 30-34lbs
  • Power: 62cc-85cc gas
    •

The only British fighter to be in continuous production throughout the war, the Spitfire continues to be a popular aircraft, with approximately 53 Spitfires being airworthy, while many more are static exhibits in aviation museums all over the world. Used by the Royal Air Force and many other Allied countries during and after the Second World War, the Supermarine is a welcome addition to our collection of giant scale plane plans.

Qty:

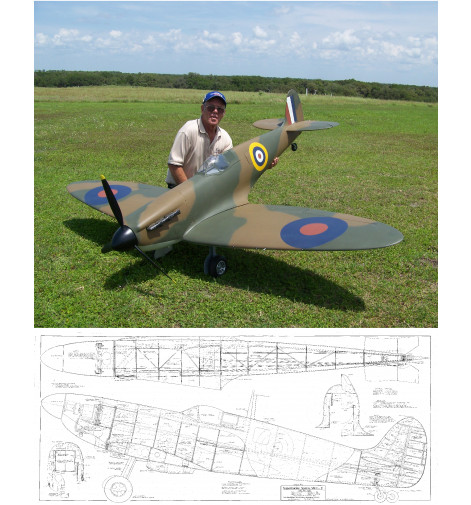

The SPITFIRE plan set consists of four large sheets that clearly illustrate all structure as well as showing installation of gear and flaps the basic structures use conventional "modeling" tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. The plan includes separate instruction guide and building notes on the plans and full size templates for all the required parts allowing you to cut a complete "kit" before you start construction. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting.

Plans Specifications:
  • Specifications: Supermarine Spitfire MK I-V Plan
  • Scale: 1/4.4
  • Inches to foot: 2.7" - 1'
  • Length: 81.5"
  • Weight: 30-34lbs
  • Wing loading: 44-48oz/sqt
  • Wing area: 1575
  • Wing span: 100"
  • Wing incidence at root: +2 degrees
  • Stab incidence: +1 degree
  • Dihedral: 5" under rib 18
  • Power: 62cc to 85 cc gas
  • Washout at wing tip: 2 to 3 degrees built in with jig
  • Aileron throws: 1" up and 0.75" down
  • Elevator throws: 1" up and 1" down
  • Flab degrees down: 85
  • Cowl length: 15 3/8"
  • Cowl height front: 5.5"
  • Cowl height rear: 10.75"
  • Cowl width front: 5.5"
  • Cowl width rear: 6.5"
  • Engine offset degrees: 1 right 1 down
  • CG location: 5" back from leading edge of wing at the fuselage
  • Requires:
  • Ziroli cowl
  • Ziroli scoop
  • Ziroli canopy
  • Ziroli plastic scale gear doors, wing radiators, trim actuators, rearview mirror
  • Engine: 62cc-85cc gas
  • Spinner: 5.5" by tru-turn
  • Fuel tank: 32oz Dubro
  • Wing Tube: 1.25" x 30"
  • Control Horns: (2) 1/2", (4) 3/4"
  • Hinges: (14) DUBROP# 257 LG flat hinges and (15) LG Robart Hinge points
  • Covering: 1oz fiberglass cloth and resin
  • Retracts Main
  • Tail gear strut
  • Retract Air kit
  • Wheels main: 5.5"
  • Wheels tail: 2.5"
  • Radio channels: 6 or more
  • Servos: (2) 120+ oz MGBB, Ailerons (2)90+oz BB, Elevators (2)90+oz BB, Rudder (1)120+oz BB, Gear (1)50oz, Throttles (1)50oz BB
            MG-metal gear BB-ball bearing
