Spirit of St. Louis Plan

Only 1000 left

65 $65.00

Product ID: ZIR:SSL1

  • Scale: 3.0" - 1'
  • Wingspan: 138"
  • Length: 86"
  • Wing Area: 2460 sq/in
  • Weight: 32-38lbs
  • Power: 62cc-85cc gas

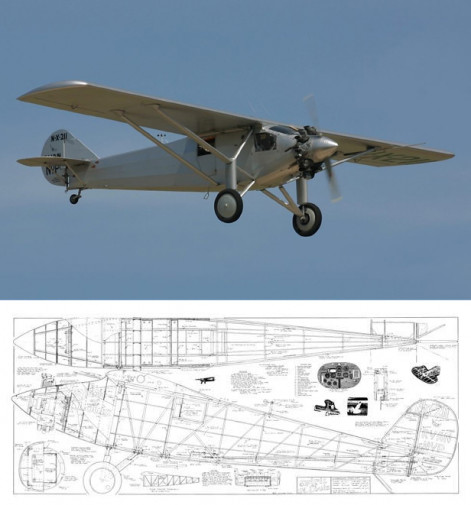

One of the most famous airplanes in history, the "Spirit" was flown by Charles Lindbergh on the world's first Trans-Atlantic solo flight. The detailed plan set consists of four large sheets which clearly illustrate all structure as well as the unique wing strut and landing gear installation. The wing is designed as a two piece assembly to ease transport.

Qty:

The giant scale Spirit of St. Louis plan set is 1/4 scale and consists of four large sheets that clearly illustrate all structure as well as showing installation of gear and wing struts. The Spirit of St. Louis plan shows the installation of Robart wing and gear struts, servos and Zenoah G-62 engine and features two piece wing.  The basic structures use conventional “modeling” tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com  forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you don’t have the tools or time to cut your own kit Nick Ziroli Plans now carries  laser cut wood kits for the Spirit of St. Louis plan. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with cloth such as Sits system or Solartex. Nick Ziroli Plans has building and scale accessories available for the Spirit of St. Louis.

Plans Specifications:
  • Specifications: Spirit of Saint Louis Plan
  • Scale: 1/4
  • Inches to the foot: 3.0" - 1'
  • Length: 86"
  • Weight:: 32-38lbs
  • Wing loading: 30-36 oz/sqft
  • Wing area: 2460 sq.in.
  • Wing span: 138"
  • Wing incidence at root: +2 degrees
  • Stab incidence: 0 degree
  • Dihedral: none
  • Power: 62-75 cc gas
  • Washout at wing tip: 2 to 3 degrees built in with job
  • Aileron throws: 1.5" up and 0.5" down
  • Elevator throws: 2" up and 2" down
  • Rudder throws: 3" to the right and 3" to the left
  • Cowl length: 6.5"
  • Cowl height front: 5"
  • Cowl height rear: 9"
  • Cowl width front: 5"
  • Cowl width rear: 9"
  • Engine offset degreese: 0 right 0 down
  • CG locations: 5.25" back from the leading edge of the wing at the fuselage
  • Requires:
  • Engine: 62-75cc gas
  • Spinner: 5" spinner
  • Fuel tank: 32oz square
  • Wing tube: 1.5" X 36"
  • Control horns: 2.5", 3.75"
  • Hinges: (15) ROBART LG hinge points
  • Covering: cloth
  • Main gear and wing struts
  • Tail gear strut: formed wire
  • Wheels main: 7.5"
  • Radio channels: 4 or more
  • Servos: Flaps n/a, Ailerons (2)90+oz BB, Elevators (2)90+oz BB, Rudder (1) 120+oz B, Gear n/a, Throttles (1) 50oz BB
            MG-metal gear BB-ball bearing
