Northrop BT-1
Zoom

Northrop BT-1

Previous Product Next Product

Only 1000 left

95 $95.00

Product ID: AND:NORTHBT1



Northrop BT-1 scale Plan Set



 This is a full size printed set of Plans and other Documentation



                      Design Specifications

                Scale: 1/4

                Wingspan: 120"

                Wing Aera: 2560 sq inches

                Length: 96"

                Power: 130cc

               Weight: 45lbs





Brief Aircraft History

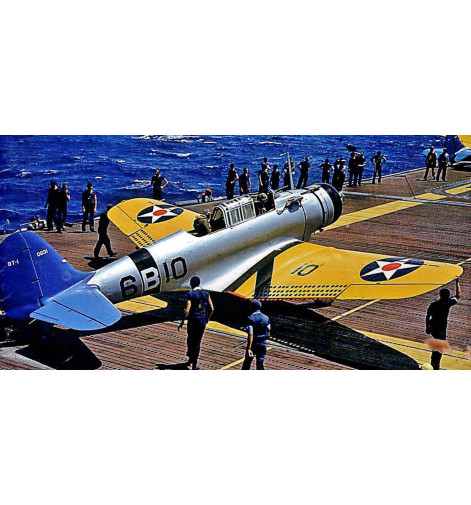

The XBT-1 was designed in 1934 in response to a navy request for a dive bomber.  It was a low wing monoplane, of all metal construction apart from fabric covered control surfaces.  The prototype was powered by a 700hp Pratt & Whitney R-1535-66 Twin Wasp Jr. engine, later replaced by an 825hp R-1535-94.  Powered by the latter engine the BT-1 was capable of carrying a 1000lb bomb, had a service ceiling of 22,500ft and a top speed of 212 mph.



The US Navy placed an order for 54 BT-1s in 1936.  The aircraft entered service during 1938, and served on the USS Yorktown and USS Enterprise.






Qty:

Northrop BT-1 scale Plan Set



This is a full size printed set of Plans and other Documentation

David's Exact 1/4 Scale Northrop BT-1 goes way beyond the initial flight characteristics of the XB1 developed in 1934.

With a wingspan 120” and a power plant of a DLE 120cc or equivalent, this design gives you the outline of the rarely model Northrop BT-1 with the flight characteristics of the Douglas XSBD-1.



For accessories needed to complete the model,

such as Cowls, Canopies, Gear etc.,  go to mnbigbirds.com



The Set Includes All of David Andersen Northrop BT-1 scale Downloads Printed Full Size:



  • Shipped rolled in Cardboard Tube
  •  Printed full size
