Vailly FW-190 A-5/A-8 Plan
SKU: VAIL:FW190
- Scale: 2.63" - 1'
- Wingspan: 90.5"
- Length: 76"
- Wing Area: 1305 sq/in
- Weight: 28-34lbs
- Power: 62-80 cc gas
The Focke-Wulf Fw 190 Würger (English: Shrike) is a German single-seat, single-engine fighter aircraft designed by Kurt Tank in the late 1930s and widely used during World War II. Along with its well-known counterpart, the Messerschmitt Bf-109, the Fw 190 became the backbone of the Luftwaffe's Jagdwaffe(Fighter Force). The twin-row BMW 801 radial engine that powered most operational versions enabled the Fw 190 to lift larger loads than the Bf 109, allowing its use as a day fighter, fighter bomber, ground-attack aircraft and, to a lesser degree, night fighter.
From Wikipedia, the free encyclopedia
In Stock
Product Description
The FOCKE WULF FW-190:

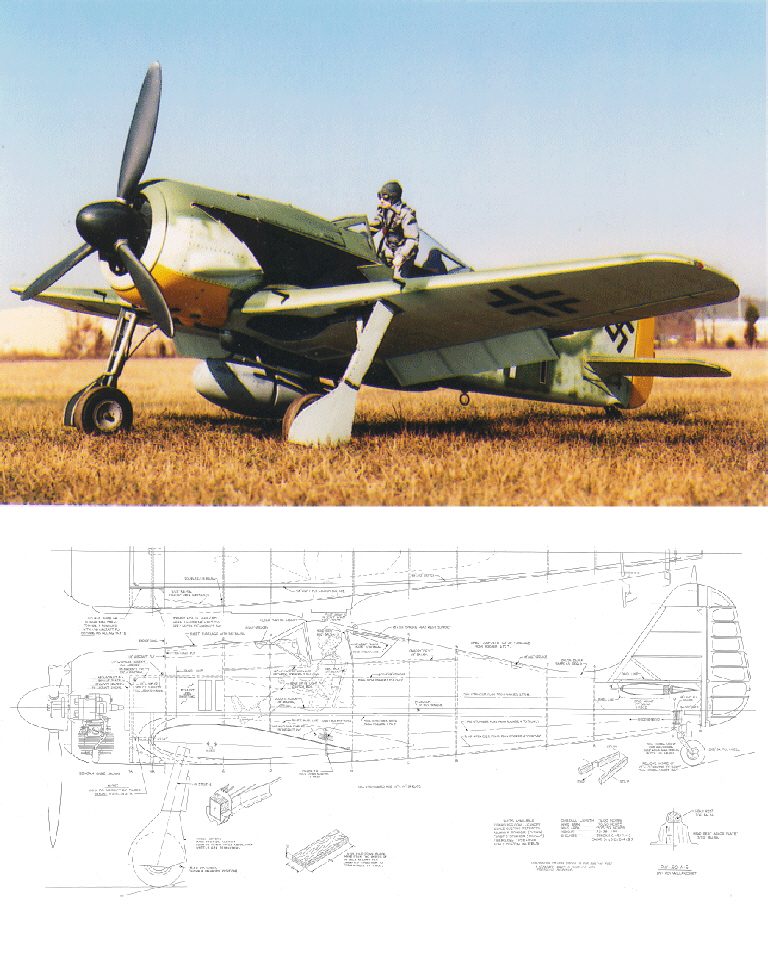

The plans show a built -up structure drawn full size and includes the installation of flaps and two sets of retracts. The retracts shown are our specially designed scale retracts, (Check out our Giant Scale Retracts), although the sport flyer may use other brands of retracts with some modifications to the wing. Full size templates are also shown for all ribs, formers and other various parts. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. For the scale purist we have also shown scale construction for the ailerons, elevators and rudder. Accessory parts available are a fiberglass cowl, clear plastic canopy, Aluminum spinner, dropable bomb or belly tank, A-5 or A-8 Gun Hood, scale retracts, landing gear door liners, wing ammo covers and functional cooling fan (when available) .
A Scale Retractable Tailwheel unit is also available.
Primary construction is light plywood, balsa and spruce using conventional “tried and true” building techniques. All structures are built-up and either sheeted with 1/8 or 3/32 inch balsa. No foam is used whatsoever. A four to six channel radio is required. The FW-190 uses special 5.50 dia. scale wheels and a 1/4 scale WW II pilot figure.
