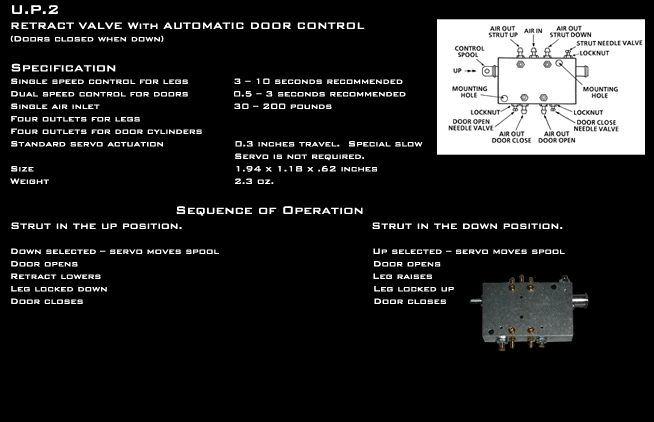

Ultra Precision UP-2 Retract and Door Valve

Doors Close with gear both up & down. P-51, B-25 Style

Specifications:

down operation: Doors open wheels come down doors close

Up operation: Doors open wheels go up doors close

Features:

• Speed Control for retracts 3-10 seconds
• Speed Control for doors .5-3 seconds
• Single Air Inlet 30-200 lbs pressure
• Four Outlets for Legs
• Four Outlets for Doors
• Servo Actuation 0.3 inches travel
• Size 1.94 x 1.18 x .62 inches
