Sterner Facet 1200/HP Plan
SKU: STER:FAC1200P
- Wingspan: 70"
- Wing Aera 792 sq"
- Wing Loading(Dry) 41oz./sq ft.
- Overall Length 52 1/2"
- Ramp Weight (Dry) 13-14 lbs
- Fuel Capacity 62oz
- Radio 5 channels min
- Turbine Power Req'd..……7 to 12# Turbine
The FACET series Sport Jet was designed as an easy, quick build, inexpensive wood airframe for primary use on short, grass field operations.
This design incorporates a Foam Core wing and an all wood fuselage.
All expensive items such as F/G Inlets, Tailpipes, Retracts etc. have been eliminate in this design.
The FACET airframe can be assembled in as little as 2 weekends by any average builder.
On of the most desired features of the FACET is that all the Turbine electronics and fuel delivery components are mounted on a single removable tray, greatly simplifying the Turbine installation.
In Stock
Product Description

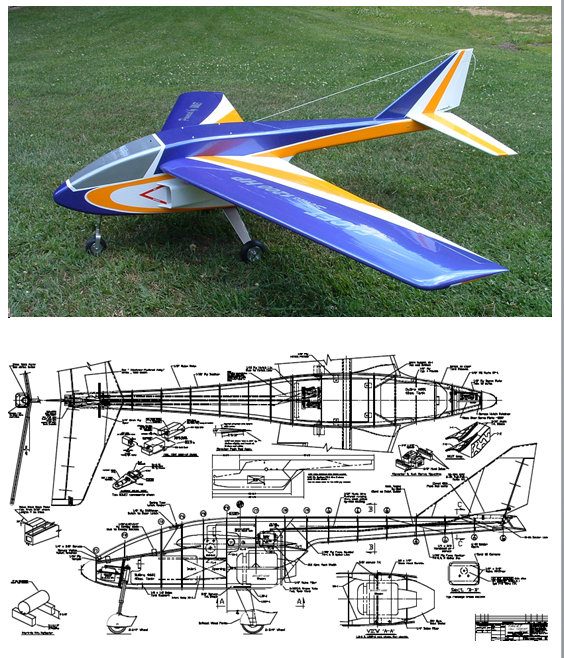

The Facet 1200 plan set clearly illustrate all structure as well as showing installation of landing gear. The Facet 1200 plan shows the installation of servos and Turbine engine and features removable wing panels. The basic structures use conventional “modeling” tools and materials such as balsa and plywood, foam and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Kerry Sterner's plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. The plans have instruction guide and notes on the plans. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with iron on covering. Nick Ziroli Plans has building accessories available for the Facet 1200.
