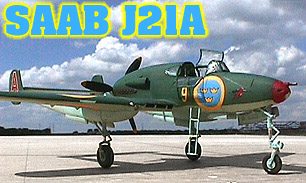

SAAB J21A
SKU: AND:SAABJ21A
|
SAAB J21A scale Plan Set This is a full size printed set of Plans and other Documentation Design Specifications Scale: 1/4 Wingspan: 113" Wing Aera: 2560 sq inches Length: 100" Power: Hacker Q80 or Q100i, Esprit KV105/10 Weight: 39.5 lbs
Brief Aircraft History On July 30, 1943, the 21 performed its maiden flight and on December 1, 1945, the first examples of the J 21A-1 were introduced to service. It was quickly followed by the improved J- 21A-2, which f The SAAB J 21 series is arguably the most iconic propeller-driven aircraft to ever come out of Sweden. For the time, they were a bit underpowered but its distinctive twin-boom, rear-engine design was easy to recognize and its aerial performance was nothing to scoff at. Due to the risks with the propeller behind the pilot, the J 21 was one of the first aircraft in the world to be fitted with an ejection seat.
|
|
|
|
In Stock
Product Description
SAAB J21A scale Plan Set
This is a full size printed set of Plans and other Documentation
David's latest, is a 1/4 Scale design of the SAAB J21 that was a self-defense fighter from World War II. This is a unique twin-boom pusher design that the Swedes built to maintain their neutrality during
World War II. Because it's a pusher design, the airframe works well as an electric-powered model. It would be very difficult to cool a combustion engine and still keep the scale look of this desig
n. Big thanks to Roy Maynard who visited the air museum in Sweden and provided images of all the scale details for David’s design.
For accessories needed to complete the model,
such as Cowls, Canopies, Gear etc., go to mnbigbirds.com
The Set Includes All of David Andersen SAAB J21A scale Downloads Printed Full Size:
- Shipped rolled in Cardboard Tube
- Printed full size
- Saab J21A Construction Manual
- Printed full size
Saab J21A Construction Manual
The Saab J21 was a major factor why Germany did not attack Sweden during WW2. The J21 was designed to operate from farm fields and dirt roads. The Swedish air force hid them in the forests and moved them frequently so that the Germans did not know where they were. This quarter-scale model is complicated. It should be attempted only by experienced scale modelers. However, all scale modelers are encouraged to read these construction notes because they are a tutorial on advanced scale model construction techniques.
There is a category of music called “musician’s music.”
Its music is so advanced, complex and subtle that only experienced musicians can appreciate it. Likewise, there is a class of scale models that is so complex and unconventional that only experienced scale modelers appreciate them. The Saab J21 belongs in that category. Its complexity requires detailed assembly instructions even for the experienced modeler. Hence this lengthy construction manual.
Table of Contents:
Elevator Assembly, Page 2
Horizontal Stabilizer Assembly, Page 5
Rudder Assembly, Page 8
Fin Assembly, Page 12
Flap Construction, Page 14
Outboard Wing Panel Assembly, Page 21
Wing Center Section, Page 44
Forward Boom Assembly, Page 61
Rear Boom Assembly, Page 71
Disassembly For Transport, Page 84
Fitting the Booms, Page 85
Fuselage Assembly, Page 89
Parts List, Page 112
References, Page 116
Photos of Full Size, Page 117
