PT-17 Kaydet/Stearman 77" Plan
SKU: ZIR:PT17771
- Scale: 2.4" - 1'
- Wingspan: 77"
- Length: 59"
- Wing Area: 1725 sq/in
- Weight: 16-20lbs
- Power: 26cc-38cc gas
Probably the most famous trainer in the world, the "Stearman taught more WWII pilots to fly than any other airplane. Its longevity is assured by the fact that many have been restored and are still in use today. The detailed plan set consists of three large sheets which clearly illustrate all structural details.
In Stock

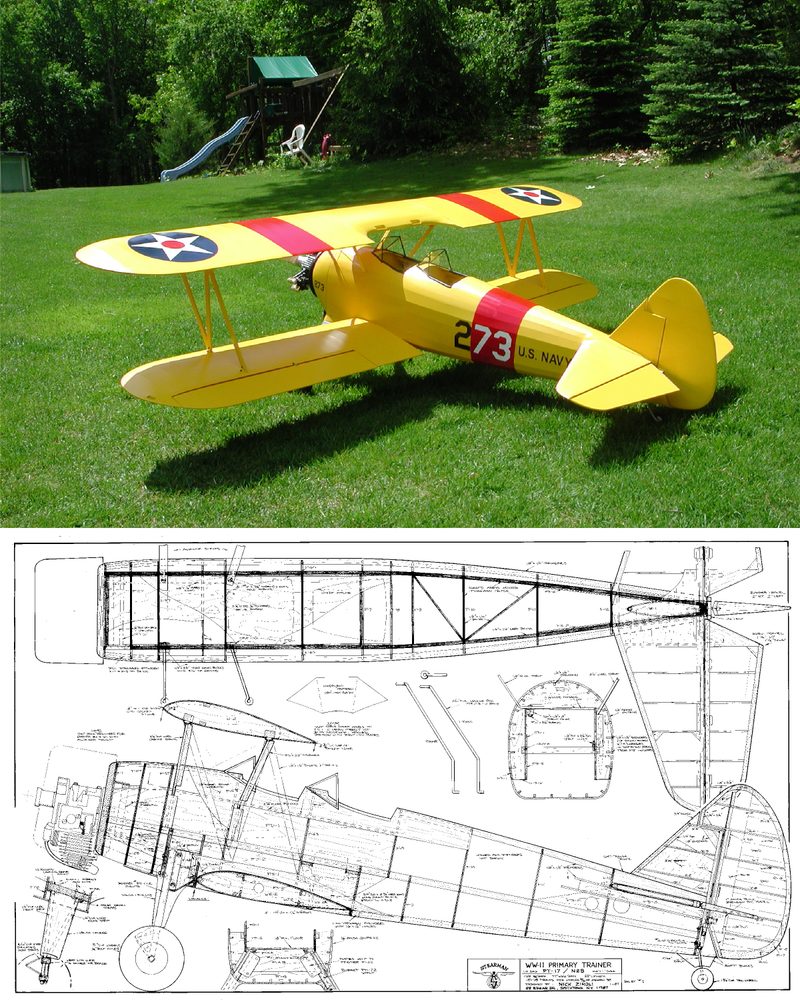

The giant scale PT-17 Stearman 77" plan set is 1/5 scale and consists of three large sheets that clearly illustrate all structure as well as showing installation of wing and gear struts. The PT-17 Stearman 77" plan shows the installation of Robart struts, fixed wire gear, servos and Quadra 35engine and features two, one piece wings. The basic structures use conventional “modeling” tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. The plans have instructions and building notes on the plans. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with cloth such as Sits system or Solartex. Nick Ziroli Plans has building and scale accessories available for the PT-17 Stearman 77".
- Specifications: PT-17 Stearman 77'' plan
- Scale: 1/5
- Inches to the foot: 2.4" - 1'
- Length: 59"
- Weight: 22-29lbs
- Wing area: 1725 sq.in
- Wing span: 77"
- Wing incidence at root: top wing +1, bottom wing 0 degrees
- Stab incidence: +1
- Dihedral: 7/8" under WB7
- Power: 26-38cc gas
- Washout at wing top: 2-3 degrees built in with jig
- Aileron throws: 3/4" up and 5/8" down
- Elevator throws: 1.25" up and 1.25" down
- Rudder throws: 2" to right & 2" to left
- Cowl length: 5"
- Cowl height front: 8"
- Cowl height rear: 8"
- Cowl width front:: 8"
- Cowl width rear: 8"
- Engine offset degrees: 0 right, 0 down
- CG Location: at leading edge of the bottom wing at the fuselage
- Requires:
- Engine: 26-38cc gas
- Fuel tank:: 20oz square
- Control Horns: (2) 1.5", (2) .75"
- Hinges: (16) DUBRO# 257LG flat hinges
- Covering: cloth or film
- Main gear struts: yes
- Tail gear DUBRO #156 and #166
- Wheels Main: 5"
- Wheels tail: 1.75"
- Radio channels: 4 or more
- Servos: Flaps n/a, Ailerons (2)90+oz BB, Elevators (1)100+oz BB, Rudder (1)100+oz BB, Gear n/a, Throttles (1)50oz BB
